Description

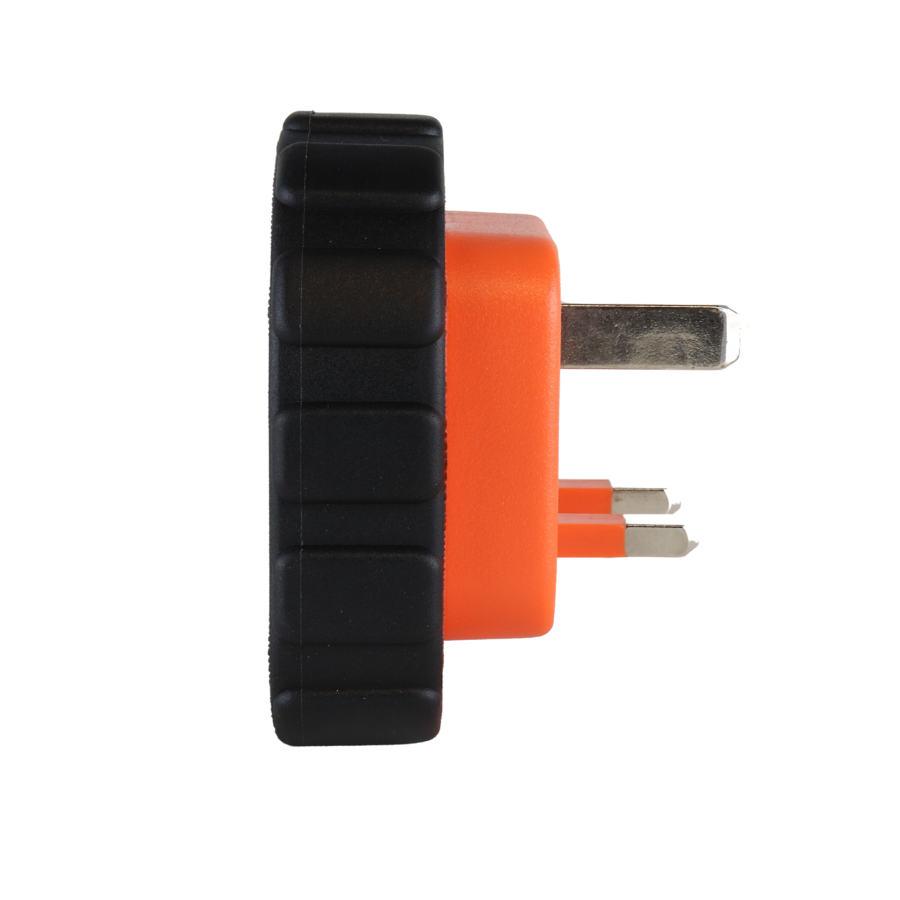

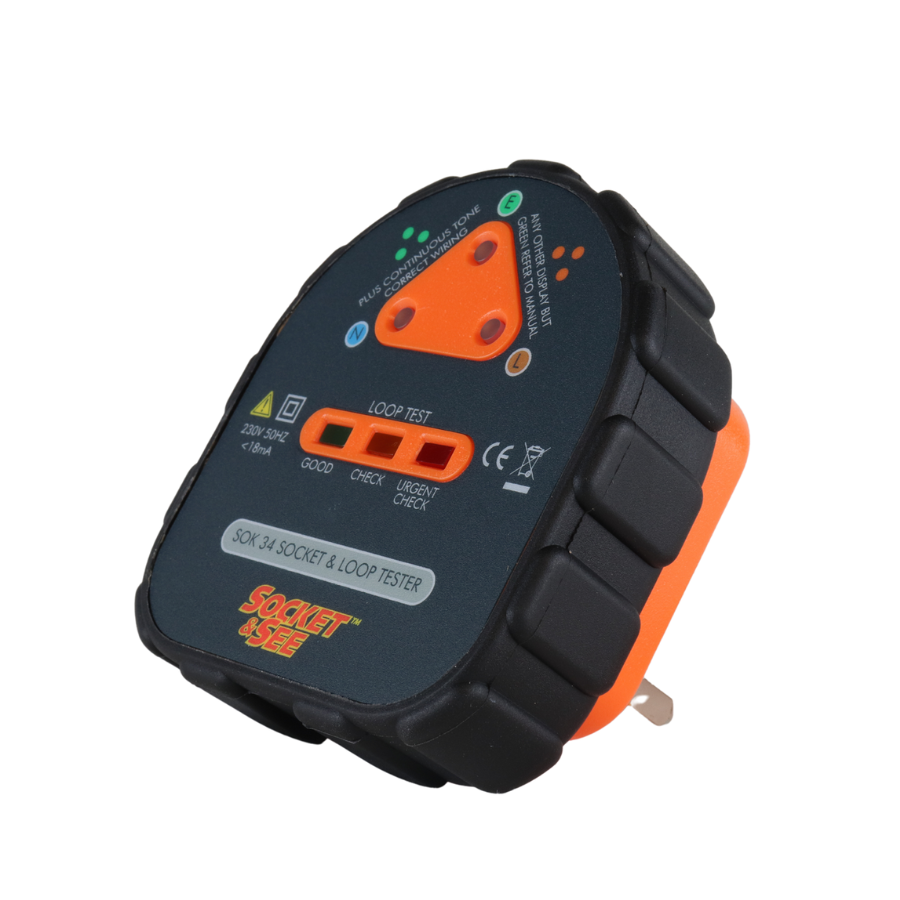

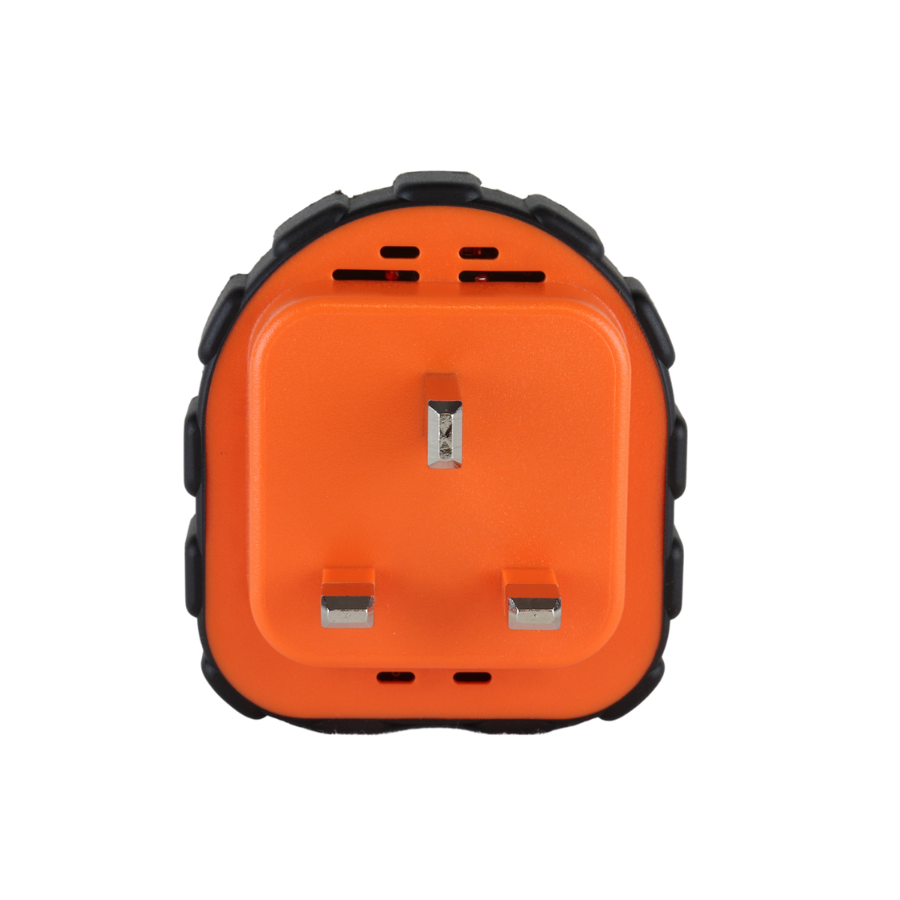

Socket & See SOK34 Easy Socket and Earth Loop Tester
The Socket & See SOK34 Socket & Earth Loop Tester is an essential tool for electricians, combining the functionality of a socket tester and an earth loop impedance tester in one compact device. With advanced technology that prevents tripping RCDs and a built-in self-check feature, the SOK34 ensures reliable performance every time. The tester automatically conducts both socket and loop tests upon being plugged in, offering immediate feedback on the wiring condition.
Clear LED indicators and distinct audible tones make the SOK34 incredibly user-friendly. When the wiring is correctly installed, three green LEDs illuminate, accompanied by a continuous tone, providing instant reassurance. If a fault is detected, the tester uses amber or red LEDs, along with a warbling tone, to quickly alert the user. It even identifies the fault’s location—whether it’s with the Live, Earth, or Neutral wiring—facilitating efficient troubleshooting.
Built to endure the demands of frequent use, the SOK34 features a robust construction with a rubber overmold for added durability. Small enough to fit into any tool bag, this tester is designed to be a reliable companion for quick, on-site checks, ensuring that you can address any electrical issues promptly and effectively.
Key Features
-
- Combines socket testing and earth loop impedance testing in one device
- Advanced circuitry ensures RCDs are not tripped during testing
- Automatic testing upon plugging in, no need to press buttons
- Green LEDs and continuous tone signal correct wiring
- Amber or red LEDs with a warbling tone indicate wiring faults
- Identifies fault location in Live, Earth, or Neutral wires for quick troubleshooting
- Performs a self-check before each use for reliable operation
- Compact and robust design fits easily into any tool bag
- Durable rubber overmold protects the device during transport
- Designed to work in noisy circuits without losing accuracy
Technical Specifications
- Power supply: 230V for consistent and reliable operation
- Input current: Less than 18mA for energy-efficient use
- Frequency: Operates at 50Hz, standard for UK electrical systems
- Operating temperature range: 0 – 40°C, suitable for most environments
- Humidity tolerance: Up to 95% non-condensing, ideal for various working conditions
- Safety compliance: Meets BSEN 61010-1 standards for electrical safety
- Duty cycle: Non-continuous use, recommended for sessions under 2 minutes
- Fault detection: Capable of identifying 18 different wiring fault conditions
- Earth loop test: Provides results as Good, Check, or Urgent Check
- Built-in self-test: Ensures the tester is functioning correctly before each use
What’s Included
- Socket & See SOK34
